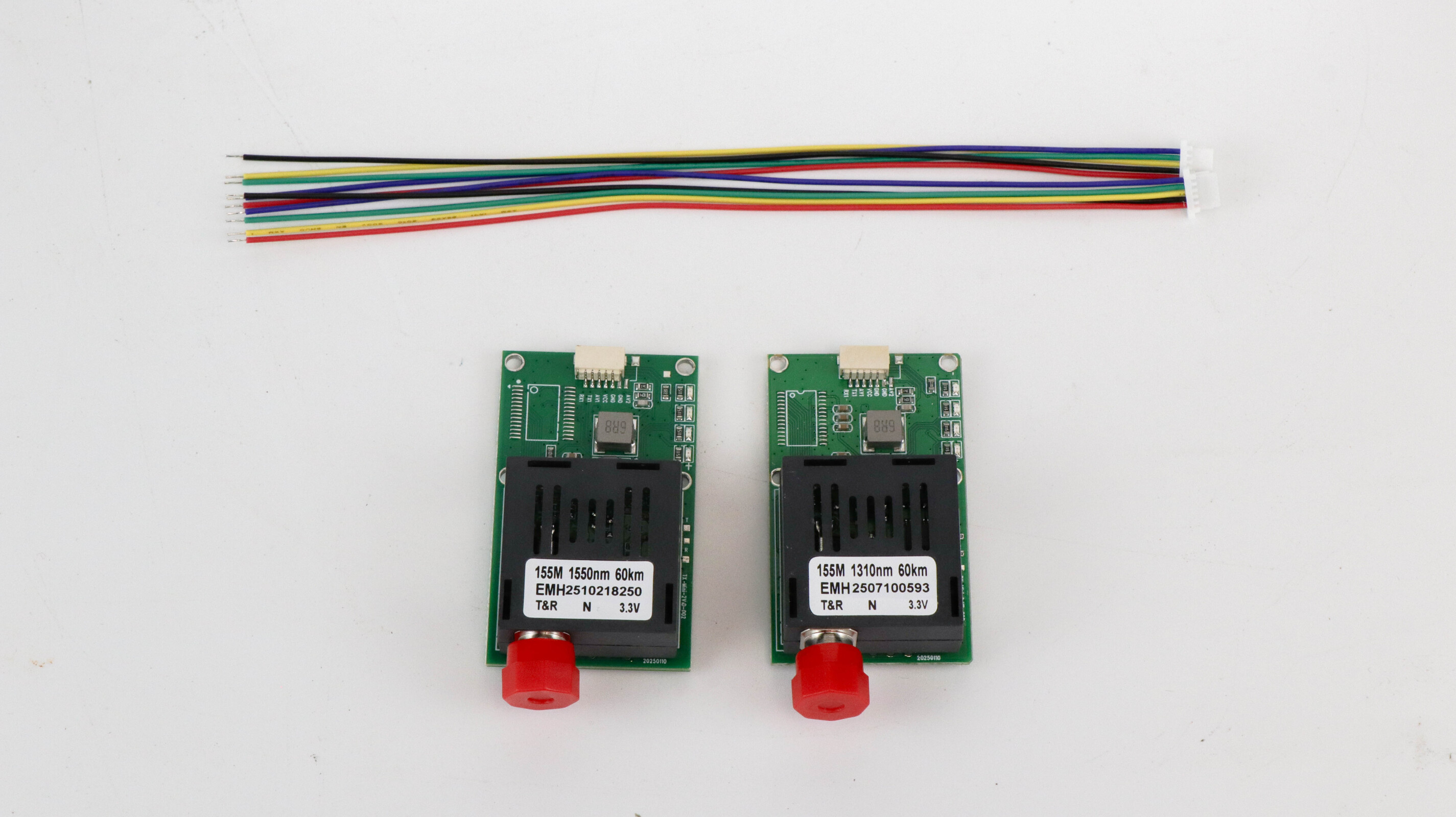

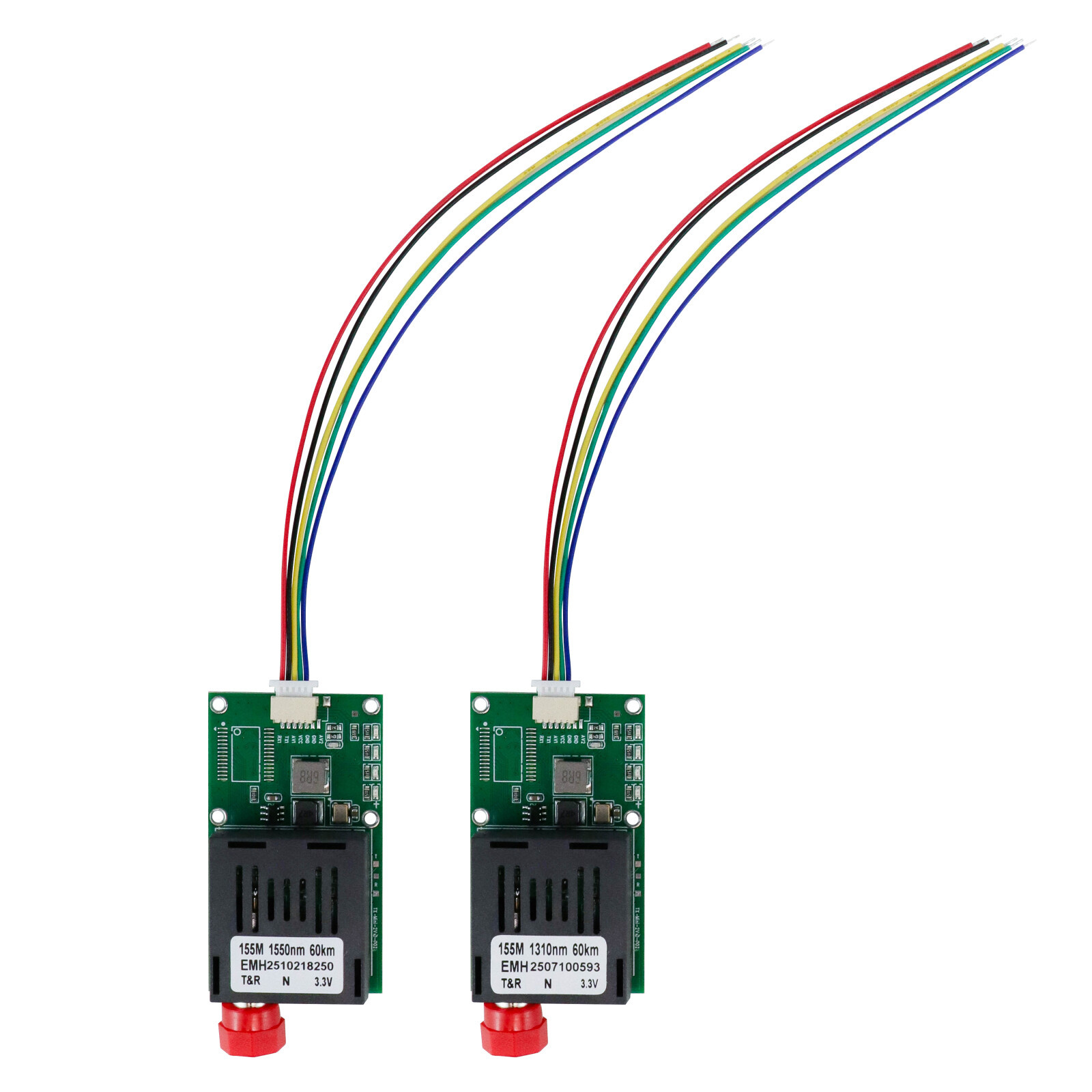

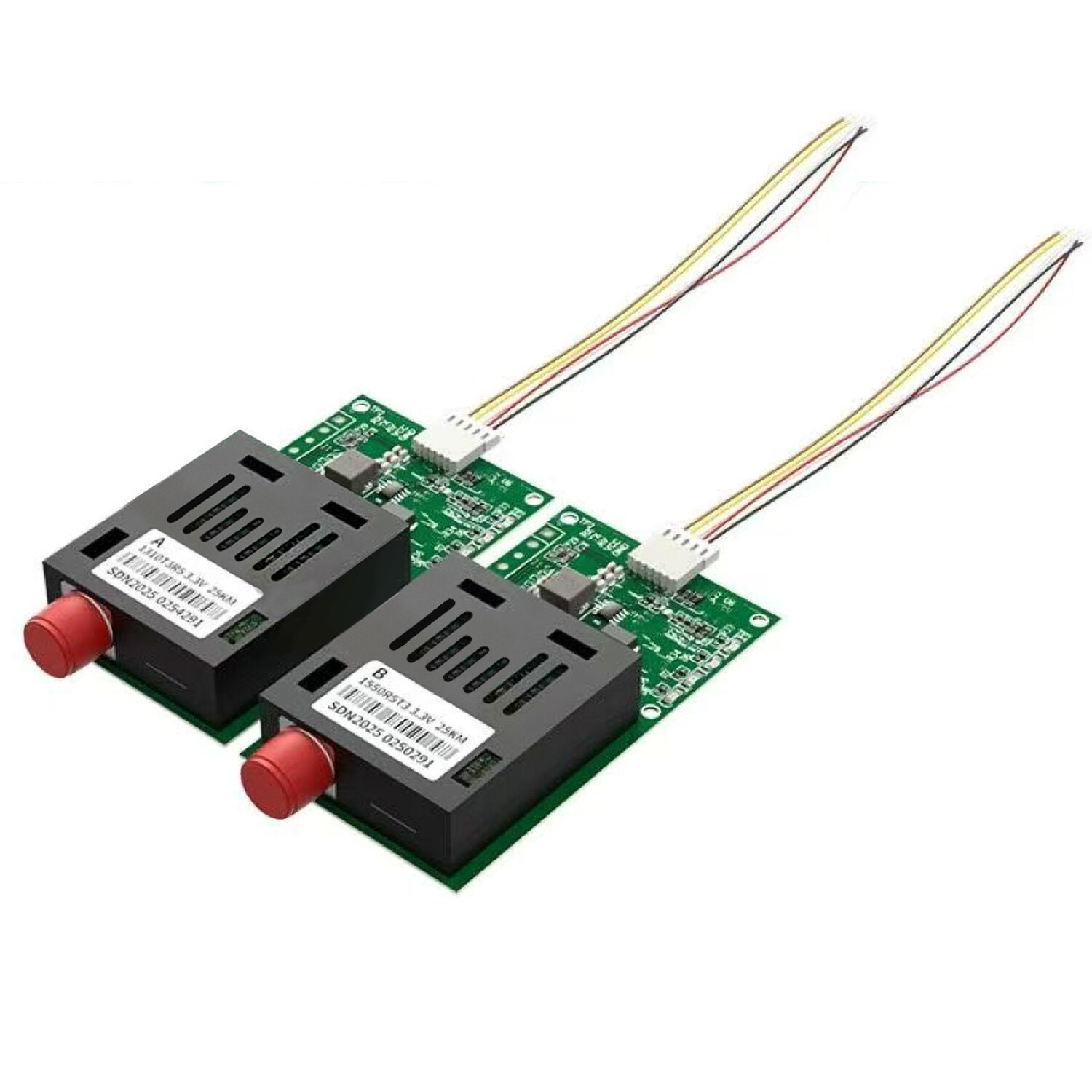

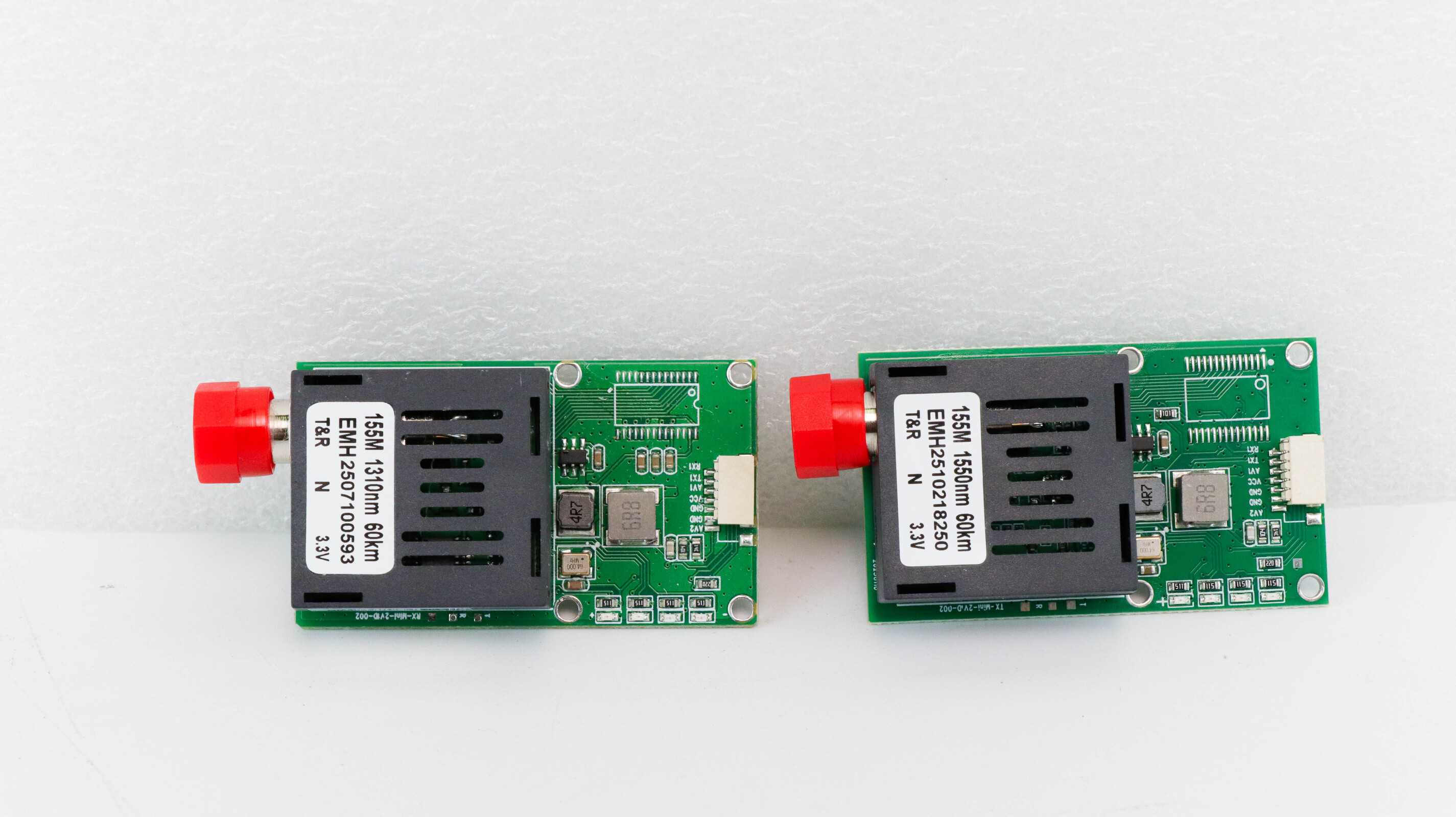

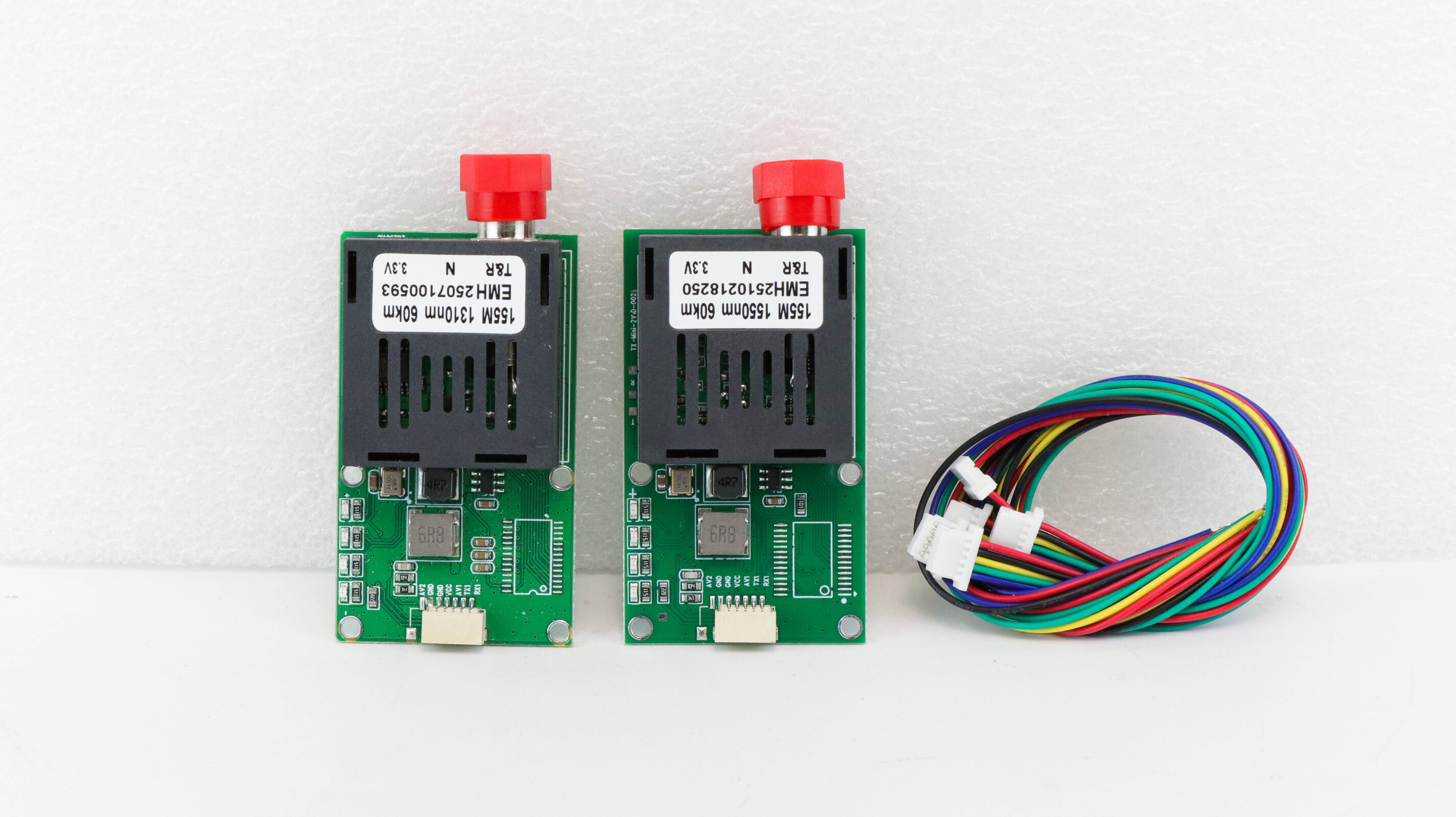

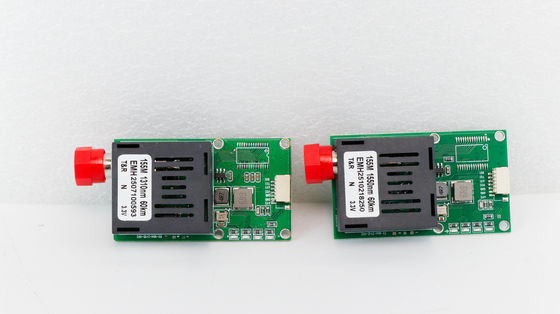

Fiber Optic Drone Module Video +TTL UAV Optical Transceiver 20KM 40KM 60KM 80KM

Fiber Optic Drone Module Video +TTL UAV Optical Transceiver 20KM 40KM 60KM 80KM

Key Features of Fiber Optic Drone Module

• 1-Channel Analog Video + 1-Channel TTL Data – Enables simultaneous transmission of video and control signals.
• Long-Distance Transmission – Optical communication range up to 80km without signal degradation.
• Wide Power Input – Supports DC 5.5–26V (2S–6S Li-ion battery), providing flexibility for different UAV platforms.
• Compact & Lightweight Design – Only 50×29×13mm, minimizing payload weight and enhancing flight efficiency.
• Wavelength Optimization – 1490nm (airborne) and 1550nm (ground) for enhanced transmission quality and signal separation.
• Multiple Status Indicators – Power, optical link, video, and data LEDs for real-time operational monitoring.
• Low Power Consumption – <5W total power usage, supporting extended UAV operation time.
• High Reliability – Rugged PCB design with strong resistance to interference and temperature variations.
• Flexible Fiber Interface Options – Supports FC / SC / ST connectors for system integration.

Specification

Application

Sky end

The wavelength of the fiber optic cable of the sky end is 1490nm, and the interface is defined as: RX/TX/AV/VCC/GND. RX is connected to the CRSFTX of the flight control, TX is connected to the CRSFRX of the flight control, and AV is connected to the AV signal output port of the flight control.

Ground end

The wavelength of the fiber optic cable of the ground end is 1550nm, and the interface is defined as: RX/TX/AV/CC/GND. RX is connected to the CRSFTX of the remote control receiver, TX is connected to the CRSFRX of the remote control receiver, and AV is output to the AV signal input port of the display or VTX. Description: This device is developed for the signal transmission system of drones with 1 analog video and 1 TTL level signal. The device has the characteristics of safety and reliability, stable performance, overall light weight, and high cost performance.

FAQ:

Q1. Can I have a sample order for video fiber converter?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q3. Do you have any MOQ limit for optical fiber switch order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
