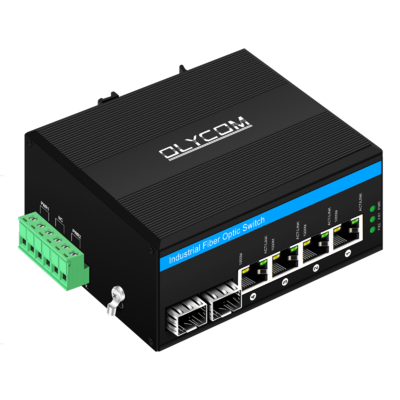

Solar Poe Switch industrial ethernet switch
Support DC12/24/48V 4 POE Ports Support Af/at/bt 120W
Key Features of Solar POE Switch
Specification of voltage booster switch
| Product Name | 10/100/1000Mbps Industrial POE Network Switch (5TP) |
| Model No. | IM-WP244BGE |
| Port |
2 x 1.25G fiber port 4 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) DRAM size: 128M Flash size: 16M |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs | Power, network |

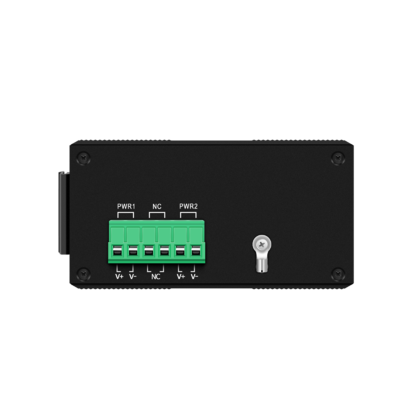

| Power supply |
POE power supply input voltage: DC12V-48V Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions) |
| Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Safety |
CE Mark ,commercial CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
| Warranty | 3 years |
Packing box of Din rail unmanaged switch:
FAQ:
1. Q: How does this Industrial 6 Ports Gigabit POE+ Network Switch compare to other standard POE switches?
A: This 6 port PoE switch features a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only.
2. Q: Does this industrial 6 ports PoE switch support 24VDC power output?
A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.
3. Q: Is it a managed industrial network switch?
A: It is unmanaged industrial network switch and no need any setting. It is plug and play, easy to use.
4. Q: What's is the PoE Pin Assignment of this Industrial 6 Ports POE+ Network Switch?
A: It supports both 1/2 (V+),3/6 (V-) and 4/5 (V+),7/8 (V-).
5. Q: Can i use it with one Non-PoE devices?
A: Yes, sure. If one Non-PoE devices is connected with this industrial 5port PoE switch. The industrial 5port PoE switch will provide data only, and don't provide power any more.
