10-Port Managed Industrial Gigabit Fiber Switch
Technical Data
| Product Name | 10/100/1000Mbps Managed Industrial Fiber Switch (2F+8TP) |
| Model No. | IM-FS280GM |
| Port |
2 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km MM:1310nm, 2Km 8 x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.1X Authentication, IEEE 802.3ad Link Aggregation Protocol: IGMPv1/v2, SNMPv1/v2c/v3, DHCP ClientTFTP, HTTP, HTTPS, Telnet, Syslog SSH, SNMP Inform, DDM, Ping/tracert detection, MIB library: MIB-II, Ethernet-Like MIB |
| Managed |
☆Support VLAN: 802.1Q VLAN (4K), Port-based VLAN ☆ Jumbo frame processing: 9k ☆ Report buffer: 64K ☆ Broadcast storm suppression: support broadcast, multicast, unknown unicast suppression ☆ Flow control: Adopt IEEE802.3x negotiation flow control, CAR function, speed limit step size is 1Kb ☆ Ring network function: support ITU-T G.8032 /Y.1344 ERPS ☆ Multicast protocol: IGMPv1/2/3 Snooping ☆ Port management: support port isolation and port aggregation ☆ DHCP management: support DHCP Snooping, option 82 ☆ QoS mechanism: 802.1p; support port default priority marking, each port has at least 4 queues with different priorities ☆ Security: login access authentication, login password modification, MAC address filtering, support dynamic or static MAC address learning / support ARP learning function off and on, ARP message speed limit / support IP+MAC+ port manual and automatic scanning binding Set IEEE 802.1x (Port based, MAC based), can transparently transmit 802.1x data packets/port loop detection |
| Switching Features |
Exchange capacity: 20Gbps Packet forwarding rate: 14.8Mpps MAC address table: 4K Swap delay: <5μs Transmission method: store and forward |
| Power supply |

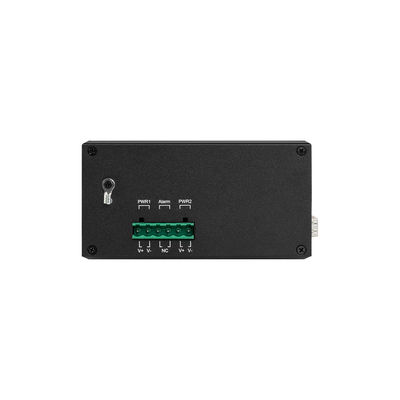

Input voltage:DC 9-52V; No-load power<5W Reverse connection: support Overload protection: support Redundant protection: support |
| Environment |
Working Temp:-40°～ 75°C Storage Temp:-40°～ 85°C; Working humidity:5%～95%, non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Mechanical information |

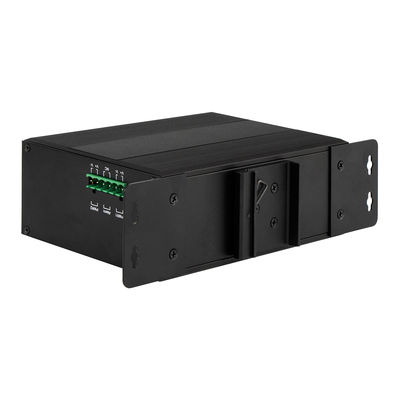

Shell:Corrugated metal shell; Safety class:IP40 Dimension:158*115*60mm Mounting method:Din-rail mounting |
| Warranty | Replacement within 1 year; 3 years repairing |
Software Features
Accessory
| Industrial Optical Module | |
| OSPL1G05D | 1000BASE-SX |
| OSPL1G06D | 1000BASE-SX(1310nm) |
| OSPL1G20D | 1000BASE-LX |
| OSPL1G40D | 1000BASE-EX |
| OSBL1G20D-35 | 1000BASE-BX-U(TX 1310 RX1550) |
| OSBL1G20D-53 | 1000BASE-BX-D(TX 1550 RX1310) |
| Industrial DIN Power Supply | |
| IM-DAC220/DC12V1.67A | AC220V to DC12V1.67A, -30℃～70℃ |
| IM-DAC220/DC24V1A | AC220V to DC24V1A, -30℃～70℃ |
Applications
