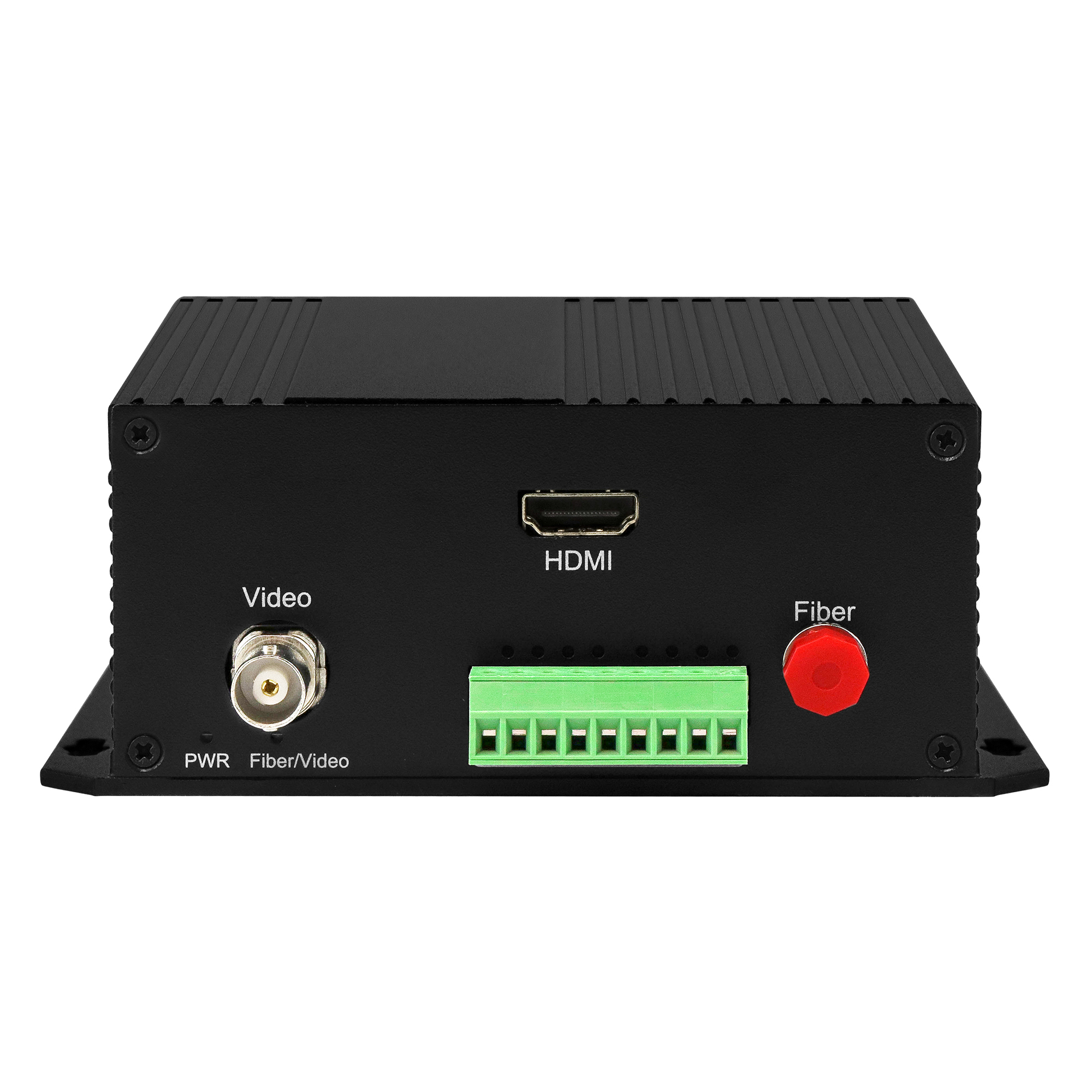

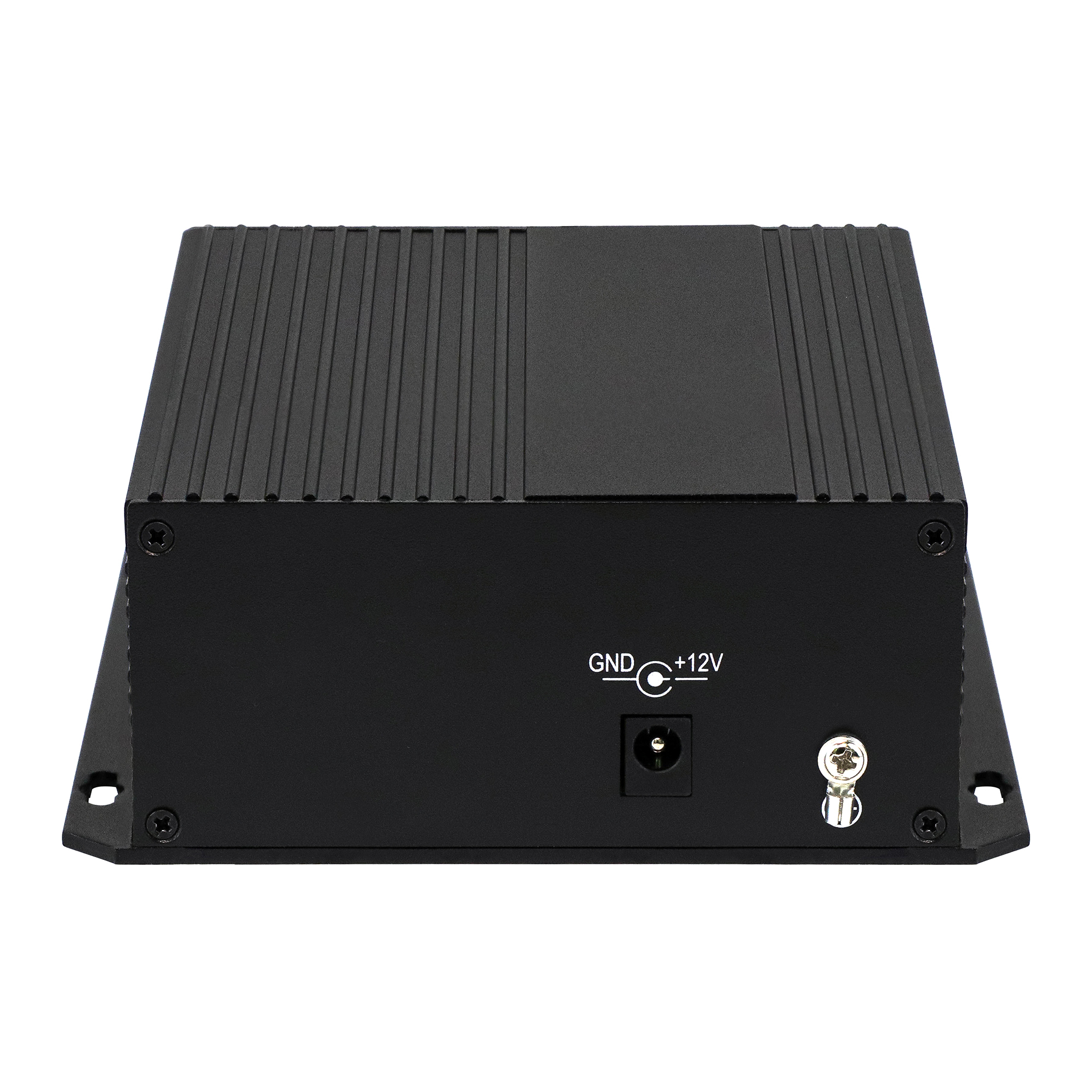

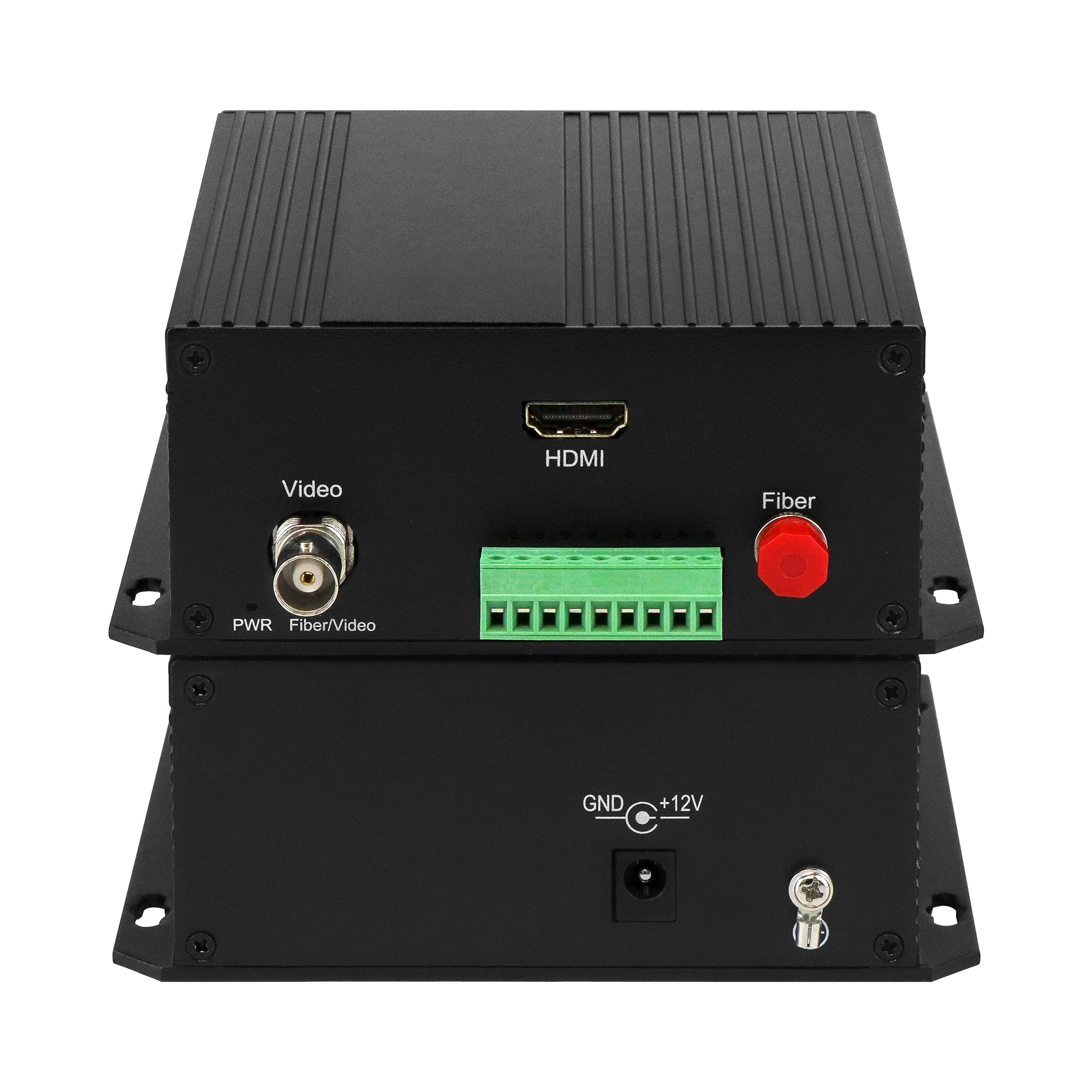

HDMI Video Fiber Optic Extender With BIDI RS422 Data
Introduction to Video Fiber Converter
|
Optical |
|
|
Wavelength |
1310nm/1550nm |
|
Output Power |
-8~3dBm |
|
Optic Fiber |
Single mode (9/125um) 20Km to 80Km Multimode (50/125um) 1Km, ( 62.5/125um) 500m |
|
Receiving Sensitivity |
-30dBm |
|
Interface |
FC/ST/SC |
|
Video |
|
|
Bandwidth |
8MHZ |
|
Compatible Systems |
NTSC/PAL/SECAM |
|
Impedance/Voltage |
BNC 75Ω (unbalanced) / 2.0Vp-p |
|
Differential Gain |
< ±1% |
|
Differential Phase |
< ±1 |
|
S/N ratio |
>60dB(weighting)(8 bit) |
|
Interface |
BNC |
|
Data |
|
|
Data Protocol |
RS232, RS422, RS485, Manchester, BIPHASE data |
|
Bandwidth |
0~300kbps |
|
Error rate |
10-9 |
|
Interface |
Phoenix terminal |
|
Chassis and Cards |
|
|
Chassis Slots Quantity |
18 slots |
|
Compatibility(with cards) |
1~4ch cards(18pcs); 8ch cards(9pcs) |
|
Flexibility |
Supports mixed installation of different configurations |
|
Cards |
In 4ch PCB(153x100x10mm) or 8ch PCB size (153x100x25mm) configurations which require larger size can’t be used with this system |
|
Electrical. Environmental. Mechanical |
|
|
Operating Voltage |
Standalone:220VAC to 5V/12VDC Rack: dual 220V/-48V AC, card: powered by chassis |
|
Operating Temperature |
-35℃～+75℃ |
|
Storage Temperature |
-45℃～+85℃ |
|
Humidity |
0~95% non-condensing |
|
Dimension And Weight |
Standalone and card: depends on different configurations, Chassis: 19”3U |
Application
Ordering Options
|
OM610-1V↑1D↓1P1E WT/R |
1ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone. |
|
OM610-1V↑2D↓2A↑1E WT/R |
1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
|
OM610-1V↑2D↓2A↑2K↑WT/R |
1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch Contact Closure Tx |
|
OM610-2P1EWT/R |
2ch Telephone + 1ch 10/100M Ethernet |
|
OM610-2V↑1D↓1P1E WT/R |
2ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone. |
|
OM610-2V↑2D↓2A↑1E WT/R |
2ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
|
OM610-4EWT/R |
4ch 10/100M Ethernet |
|
OM610-4P2D↓WT/R |
4ch Telephone+ 2ch RS485 data Rx |
|
OM610-4V↑1D↓4E WT/R |
4ch video Tx + 1ch RS485 data Rx + 4ch 10/100M Ethernet |
|
OM610-4V↑1D↓4PWT/R |
4ch video Tx + 1ch RS485 data Rx + 4ch Telephone |
|
OM610-4V↑12D↓WT/R |
4ch video Tx + 12ch RS485 data Rx |
|
OM610-2D↓8PWT/R |
2ch RS485 data Rx + 8ch Telephone |
|
OM610-20D↓WT/R |
20ch RS485 data Rx |
|
OM610-1V↑↓1D↑↓1A↑↓1K↑↓WT/R |
1ch bi-di video + 1ch bi-di RS485 data + 1ch bi-di audio + 1ch bi-di contact closure |
|
OM610-2D↑↓4A↑↓1E WT/R |
4ch bi-di audio + 2ch bi-di RS485 data + 1ch 10/100M Ethernet |
|
OM610-1V↑1D↑↓3A↑2K↑↓WT/R |
1ch video Tx + 2ch bi-di RS485 data + 3ch audio Tx + 1ch bi-di contact closure |
|
OM610-4V↑2D↓2A↑1E 1P2K↑WT/R |
4ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet + 1ch Telephone + 2ch Contact Closure Tx |
Olycom OM610 series of optical transmitter and receiver offer a wide selection of configurations, ranging from a simple setup with a single channel of a specific type of signal to sophisticated solutions with many channels of different signals (video, audio, data, telephone, alarm, and Ethernet). The flexible configurations are open to customization and ODM to cater various needs.
Please contact us for more configurations / customization / OEM / ODM.
