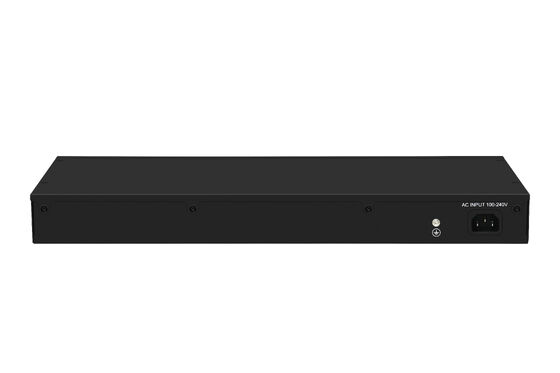

Olycom 24-port Gigabit Ethernet switch with VLAN/Extend mode
|
Product Name |
24 Port 10/100/1000Mbps Rack Type Ethernet Switch |
|
Port |
24x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing) |
|
Switching Capacity |
48Gbps |
|
Throughput |
35.71Mpps |
|
Packet Buffer |
4M |
|
MAC Address |
8K |
|
Jumbo Frame |
4Kbytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hours |
|
Network Protocol |
IEEE802.3(10Base-T) IEEE802.3u(100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3x(Flow control) |
|
Industry Standard |
EMI: FCC Part 15 CISPR(EN55032)class A EMS: EN61000-4-2(ESD) EN61000-4-5(Surge) |
|
Network Medium |
10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) |
|
Certification |
CE/FCC/RoHS |
|
Working Environment |
Working Temperature: -10℃~50℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Input Voltage |
AC100-240V, Single Power Input Internal AC-DC Converter: 12V2A |
|
LED Indicators |
PWR(Power indicator)/LOOP(Loop alarm)/Link(Network Link)/1000M |
|
DIP Switch |
VLAN: Port Isolation, 1-22 ports are isolated each other, all communicate with uplink port 23/24 Default: Default mode, support loop alarm Extend: Monitor Mode, 1-22 ports support 100M speed reduction negotiation, support 250 meters in 10M/s mode, port 23/24 as uplink port |
1pc switch(neutral device)
1pc power cable(standards vary across countries)
1pc user manual(including QIG information)
1pair mounting brackets(rack mountable)
Product size: 440*204*44.5mm
Inner box size: 500*275*85mm
Product weight: 2.2Kg
Packing weight: 2.7Kg
Master box size: 520*445*300mm
Packing quantity: 5Pcs
Packing weight: 14.5Kg
Remark
Accessories(Network cable etc.)are NOT included in the packing box
Power cable is included in BOTH the packing box AND unit pricing
Application Diagram
About OLYCOM
1. Company Profile
Founded in 2003, OLYCOM is a technology-oriented provider of fiber optic and networking solutions, focusing on delivering stable, scalable connectivity for global customers across industrial, telecom, and enterprise sectors.
2. Core Offerings
Products include industrial Ethernet switches, DWDM systems, PoE switches, media converters, and optical modules, supporting high-speed transmission, long-distance communication, and flexible network expansion.
3. Application Scenarios
Solutions are widely used in transportation, energy, manufacturing, data centers, security systems, and smart city projects where reliability and performance are critical.
4. Global Presence
OLYCOM serves customers in 120+ countries, working with system integrators, distributors, and operators, adapting to diverse technical and market requirements.
5. Key Strengths
Engineering-driven development, strict quality control (ISO9001, CE, FCC, RoHS), flexible OEM/ODM services, and a strong balance between performance and cost.
6. Vision & Value
Committed to enabling efficient, reliable connectivity, OLYCOM aims to be a trusted global partner in optical communication and network infrastructure.
