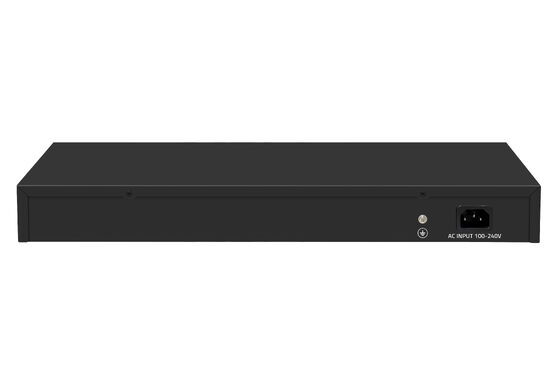

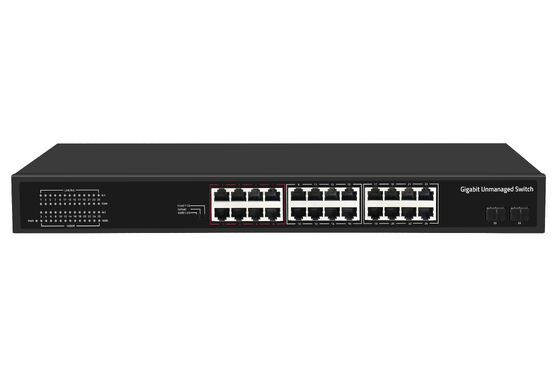

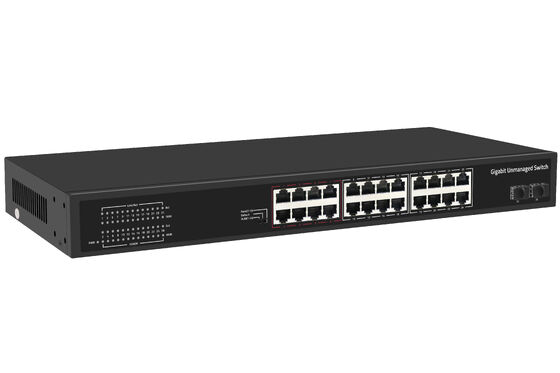

26 Port Gigabit SFP Uplink Fiber Network Switch
|
Product Name |
26 Port 10/100/1000Mbps Rack Type Ethernet Switch |
|
Port |
24x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing) |
|
Switching Capacity |
52Gbps |
|
Throughput |
38.68Mpps |
|
Packet Buffer |
4M |
|
MAC Address |
8K |
|
Jumbo Frame |
9.6Kbytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hours |
|
Network Protocol |
IEEE802.3(10Base-T) IEEE802.3u(100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x(Flow control) |
|
Industry Standard |
EMI: FCC Part 15 CISPR(EN55032)class A EMS: EN61000-4-2(ESD) EN61000-4-5(Surge) |
|
Network Medium |
10Base-T : Cat3/4/5 or above UTP( ≤100m) 100Base-TX: Cat5 or above UTP( ≤100m) 1000Base-TX: Cat5 or above UTP( ≤100m) |
|
Optical Media |
Multi mode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm |
|
Certification |
CE/FCC/RoHS |
|
Working Environment |
Working Temperature: -10℃~50℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Input Voltage |
AC100-240V, Single Power Input Power supply: 12V2A |
|
LED Indicators |
PWR(Power indicator)
Link/Act(1-26)
|
|
DIP Switch |
VLAN: Port Isolation, 1-24 ports are isolated each other, all communicate with uplink port 25/26 Default: Default mode, all port can communicate with each other Extend: Link extension mode, 17-24 ports data transmission distance can be extended to 250 meters, the transmission rate becomes 10M/s |
Key Features
1pc switch(neutral device)
1pc power cable(standards vary across countries)
1pc user manual(including QIG information)
1pair mounting brackets(rack mountable)
Shipping box information(Below information is approximately accurate)
Product size: 440*204*44.5mm
Inner box size: 500*290*85mm
Product weight: 2.36Kg
Packing weight: 2.93Kg
Master box size: 520*445*310mm
Packing quantity: 5Pcs
Packing weight: 15.6Kg
Remark
Accessories(optical module, patchcord etc.)are NOT included in the packing box
Please prepare it by yourself or purchase a whole set from us
Power cable is included in BOTH the packing box AND unit pricing
Dimension
About OLYCOM
1. Company Profile
Founded in 2003, Shenzhen OLYCOM focuses on fiber optics and networking solutions
Combines R&D, manufacturing, and global delivery capabilities
Serves customers in 120+ countries across telecom, industry, and enterprise sectors
2. Core Products
Industrial Ethernet switches (L2/L3, managed/unmanaged)
PoE switches (IEEE 802.3af/at/bt)
DWDM systems (MUX/DEMUX, OADM, high-capacity transmission)
Media converters (fiber ↔ Ethernet)
SFP modules (1G–400G, multi-brand compatible)
Fiber devices (video extenders, serial converters, PLC modules)
3. Key Capabilities
Industrial design for harsh environments (temperature, vibration, humidity)
Redundant power input and stable long-term operation
High-speed transmission with low latency and high bandwidth efficiency
Scalable optical solutions to maximize fiber utilization
4. Global Reach
Strong presence in North America, Europe, Southeast Asia, and the Middle East
Long-term cooperation with distributors, integrators, and enterprise clients
5. Competitive Strengths
Continuous R&D investment with experienced engineering team
Strict quality control (ISO9001, CE, FCC, RoHS)
OEM/ODM customization for project-specific needs
Balanced cost-performance for high-value solutions
6. Applications
Telecommunications & long-distance transmission
Surveillance & security (PoE for IP cameras)
Data centers & high-speed networks
Industrial automation & smart infrastructure
Smart city & IoT deployments
7. Vision & Mission
Vision: Become a trusted global networking solution provider
Mission: Deliver reliable, scalable, and cost-efficient connectivity solutions
8. Summary
20+ years of experience in networking and fiber optics
Focus on stability, performance, and practical deployment value
Enabling faster, more reliable, and scalable network infrastructure worldwide
QC Framework
1. Standards
Comply with ISO9001, CE, FCC, RoHS, IEC 61753, ITU-T G.694.1; meet industrial field networking and long-distance transmission specifications.
2. Process
Incoming inspection of optical fibers, connectors, transmission chips and lightning protection modules;
Production assembly and optical path coupling inspection;
Optical transmission index test, relay transmission verification, surge & ESD protection test;
Wide temperature cycle test, anti-interference test, long-time uninterrupted operation test;
Aging screening and full performance regression test before delivery.
3. Tests
Optical loss, dispersion tolerance, transmission distance, relay capability, ESD/lightning protection, -40~75℃ temperature adaptability.
4. Tools
Optical time-domain reflectometer (OTDR), fiber loss tester, ESD simulator, environmental test chamber.
5. System
Full optical path test records, serial number traceability, component and supplier quality archive.
6. Improvement
Transmission stability analysis, on-site fault simulation, lightning protection and anti-interference optimization.
